About Mechanical Concepts



    Chongqing Mechanical Concepts Intelligent Equipment Technology CO.,LTD ,orginal from “Mechnical concepts”and authorized by the global leading seals manufacturer in material handling industry “WOODEX MECO INDUSTRIES”,we serve for china and around customers.Established in 2017，we are an ISO 9001 certified company with import and export qualification and intellectual patents.
    We offer mechanical seals ,customized parts,and import & export services for material handling industry.We focus on solving material leakage, and safety in production for the battery material, rubber and plastic chemistry , food, pharmacy and pulp paper to help them reduce costs and improve efficiency.
    We’ve set up offices in Chongqing and Canton.With engineering and technical and after-sales service team.Our responsibility is creating value for users , we are willing to work with users to achieve the beautiful vision of 2030 carbon peak.
    Our value ,“Listen to the users’demands,even it’s minor,In a race against time, we will always be there where the users need us”.



About MECO Seal


    Tracing their origins to 1985, when Woodex Bearing Company partnered with the inventor of a mechanical screw conveyor seal with high run-out tolerance. Woodex began manufacturing his innovative H-style seal for Conveyor Equipment Manufacturers Association (CEMA) compliant industries. The cutting-edge seal featured a polymer-versus-stainless steel seal face and elastomer drive, and set new industry standards for screw conveyor seals.

The success of that partnership demonstrated the growing need for custom shaft seals, and spurred Woodex to establish MECO Seals—short for “Mechanical Concepts”—is a division dedicated to the engineering, design, and manufacturing of high-tolerance seals.



Application

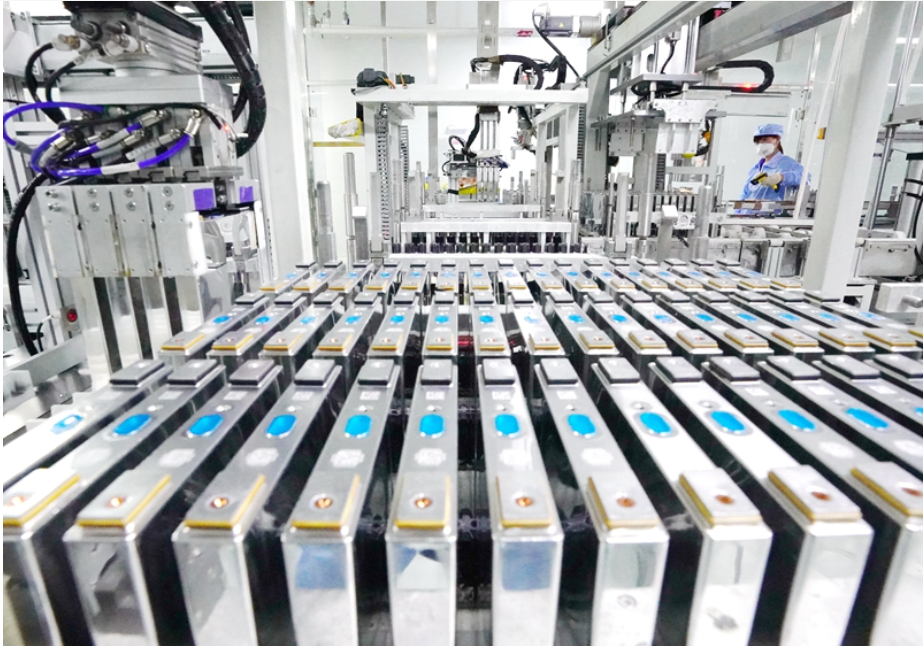

THE BATTERY INDUSTRY



MECO seal is widely used in battery positive and negative electrode materials mixing, conveying and other equipment.

THE FOODAND NATURAL PRODUCTS INDUSTRIES



MECO seal uses FDA certified materials and fully meets the safety and health requirements in the food production process. MECO seals are widely used in chocolate, flavor, confectionery, pet feed, dairy manufacturing equipment.

THE PLASTIC AND SCOMPOUNDING INDUSTRIES



MECO seals meet sterilization requirements, European ATEX explosion-proof requirements. Better meet the use of this working condition.

PULPING AND PAPER MAKING



MECO works closely with customers in the paper industry to develop high-performance seals that are more suitable for slurry production to ensure production reliability, and the fully split structure is easier to maintain.

Products

HA Seal

HA Seal

Designed in C.E.M.A Standard and Metric Sizes The MECO HA seal is a modular mechanical shaft seal, designed to fit process equipment following Conveyor Equipment Manufacturers Association (C.E.M.A.) standards, with many customizable material options to meet your application’s requirements. A combination of MECO’s classic HB and HC model seals, the HA seal is an air purged seal that can be quickly and easily adjusted without disassembling the seal. Unlike standard stuffing box seals,the HA sea

Installation Ready Gas Panel

Installation Ready Gas Panel

Custom panel configurations available on request. The MECO IS-301L (left access) or MECO IS-301R (right access) compressed gas panel utilizes a precision, low pressure regulator with capacity for high flow during non-steady-state, upset conditions or high runout service. The unit provides transducers for remote display, minimizes pressure creep, measures flow rates and is arranged on a 30 cm (1ft) x 60 cm (2ft) stainless steel panel and includes stainless U-bolts for easy mounting.

Seals for ATEX Applications

Seals for ATEX Applications

MECO Seals Explosive Atmosphere Applications ATEX is a set of European prevention standards to ensure equipment is safe to operate in potentially explosive environments. Meco seals can be engineered to meet specific ATEX requirements under Directive 2014/34/EU, providing reliable sealing solutions for hazardous applications. Seal models are chosen for best compatibility with the process and may include the: AH Seal EP Type 2 EP Type 3 Ask about other model designations based on these

MB

MB

Replace Packing in Airlocks and Rotary Valves The MECO MB seal model is an elastomer driven, contacting face seal designed to fit inside of an existing stuffing box. It is not available in a split configuration. It is only available for specific, true running equipment, dimensionally accurate and with minimal runout (≤1mm or 1/32”)

HH-2

HH-2

Simply Effective Sealing The MECO HH Type-2 is a fully custom, air-purged mechanical shaft seal. It can be quickly adjusted without disassembling the seal assembly by tightening the HH Type-2’s simple adjusting clamp. Unlike standard stuffing box seals, the HH Type-2 is non-abrasive to the machine’s shaft and can accommodate shaft runout. The HH Type-2 is available fully split for efficient installation and maintenance. Fully-split Air-purged Adjustable without disassembly Elastomer drive

HC Seal

HC Seal

Air-Free Sealing Technology The MECO HC seal model is a full-contact, soft-face mechanical shaft seal, using an elastomer drive to rotate bearing-grade, polymeric seal faces against fixed, stainless steel stationary faces. The MECO HC Seal is sized for equipment following standards set by the Conveyor Equipment Manufacturers’ Association (C.E.M.A.) and metric equivalents. Air-free Economical Adjustable without disassembly Shaft runout capability

EP-1

EP-1

Wet abrasive slurry sealing The MECO EP Type-1 seal model is designed for fluid, slurry and paste applications on moderate to very large shaft diameters entering the vessel from any direction. The fully-split seal uses an elastomer drive to rotate two stainless steel seal faces against two fixed polymeric bearing-grade stationary seal faces. The MECO EP Type-1 is designed around its own fully-split, stuffing box-type housing that utilizes external springs to close the seal faces. The housing fo

OFS-2

OFS-2

Full Contact, Soft Face Mechanical Seal The MECO OFS Type-2 model is a good choice in many sealing applications for low to moderate speed equipment at moderate temperatures. The OFS Type-2 uses full-contact, soft-face mechanical shaft sealing technology, available in sizes to fit most food process equipment. Fully split Easily cleaned Air-free Self-adjusting

OFS-1

OFS-1

Permitting Significant Axial Shaft Motion The MECO OFS Type-1 seal is a fully-split seal for vacuum, low pressure, fluid, vapor and abrasive applications. The design tolerates both runout and thermal growth at moderate speeds. The MECO OFS Type-1 places a single, stainless steel rotary seal face, spring-loaded against a single, bearing-grade, polymeric stationary seal face. The seal does not require a barrier fluid. A wide selection of materials is available, allowing service in diverse proce

EP-3

EP-3

Double Mechanical Seal With a Mechanical Drive The MECO EP Type-3 model is a highly versatile split seal for horizontal dryers and reactors in vacuum service. The EP Type-3 is a double mechanical seal, using a mechanical drive to rotate bearing-grade, synthetic seal faces against fixed, stainless steel seal stationary faces. The EP Type-3 is a full-contact, soft face mechanical shaft seal, custom-designed to fit your machinery with little or no modification. Fully split High axial shaft m

EA-2

EA-2

Adjustable Without Disassembly The MECO EA Type-2 model is suited to many sealing applications for low to moderate shaft speeds on small to very large shaft diameters. The EA Type-2 uses full-contact, soft-face mechanical shaft sealing technology The EA Type-2 model provides the superior performance, durability and quality of workmanship that are hallmarks of MECO’s many other highly-regarded seals. MECO’s first rate customer service is available for every EA Type-2 seal. Fully split Elas

EP-2

EP-2

Double Mechanical Seal With an Elastomer Drive The MECO EP Type-2 model is used in many sealing applications with low to medium-high shaft speeds, on small to large shaft diameters. The configuration is a double mechanical seal using an elastomer drive to rotate bearing-grade, synthetic seal faces against fixed, stainless steel seal faces. The MECO EP Type-2 uses full-contact, soft-face mechanical shaft sealing technology The MECO EP Type-2 model provides the superior performance, durability

EA-1

EA-1

Calibration Without Disassembly The MECO EA Type-1 fully-split seal model is used for sealing wet slurries. The fully-split configuration uses an elastomer drive to rotate two stainless steel seal faces against two fixed, bearing-grade polymeric stationary seal faces with their contacting sealing plane set perpendicular to the shaft. The polymeric stationary seal faces are built into two fully-split stainless steel stator plates. One split stator is mounted to the vessel wall and the other is

AH-2

AH-2

Eliminate Setting Seal Face Pressures The MECO AH Type-2 model is a split seal, designed to fit in limited space on small to large shaft diameters. The configuration is a soft-face, double mechanical seal using an elastomer drive to rotate bearing-grade synthetic seal faces against fixed, stainless steel seal faces. The MECO AH Type-2 uses a barrier gas to pneumatically load the seal faces and isolate the process from the atmosphere. The AH Type-2 is custom-designed to fit your equipment with

HB Seal

HB Seal

Designed in C.E.M.A Standard and Metric Sizes The MECO HB seal model is a full-contact, air-purged soft-face mechanical shaft seal primarily designed for screw conveyors. It uses an elastomer drive to rotate bearing-grade synthetic seal faces against fixed, stainless steel faces. The HB Seal is sized for equipment following standards set by the Conveyor Equipment Manufacturers’ Association (C.E.M.A.) and metric equivalents. Air-purged Economical Fully split repair kits Shaft runout capa
